24,000 BTU 22.3 SEER2 ACiQ 2-Zone Ceiling Cassette Mini Split System with Extreme Heat - 12 12
ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat 24,000 BTU 22.3 SEER2 ACiQ 2-Zone Ceiling Cassette Mini Split System, you get higher SEER and better low ambient (hyper heat) performance than the competition.
Please Note: ACiQ multi-zone condensers are pre-charged with R410-A refrigerant for 25 feet per air handler connection. In many cases, no additional refrigerant is required. All ACiQ systems are run-tested at the ACiQ facility for years of trouble-free performance. Troubleshooting is easy thanks to the system's self-diagnosing control board with alerts that are sent to each connected air handler.

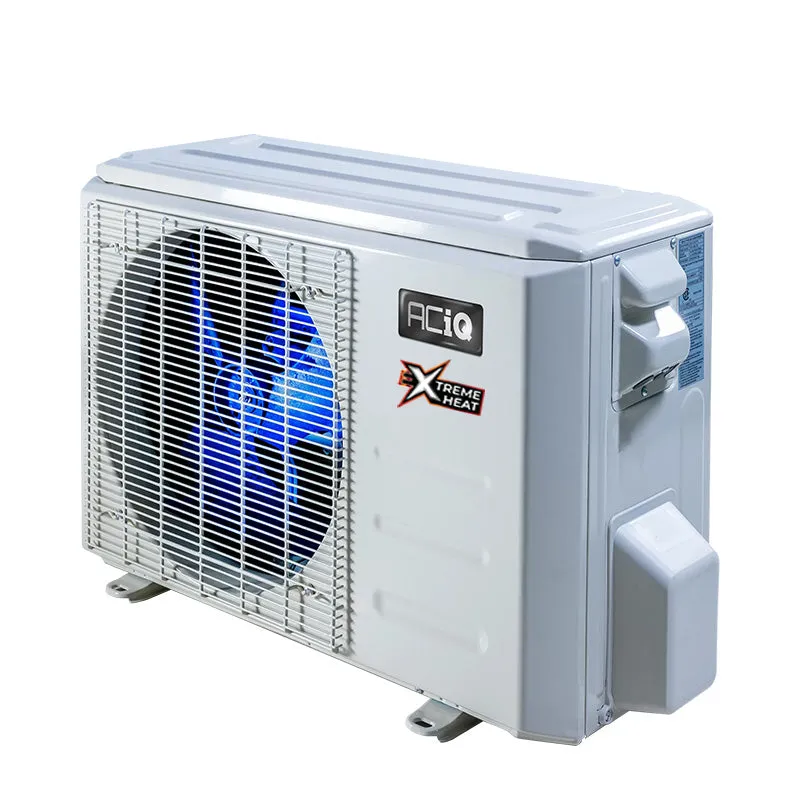

18,000 BTU ACiQ Multi Zone Condenser w/ Max Heat
The 18,000 BTU, ACiQ-18Z-HH-M2 is designed to easily support up to 2 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 22.3 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Features:
- 18,000 BTU, 22.3 SEER2 multi zone heat pump condenser
- Designed to function with up to 2 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 57°F outdoor temperatures
- Integrated Max Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads

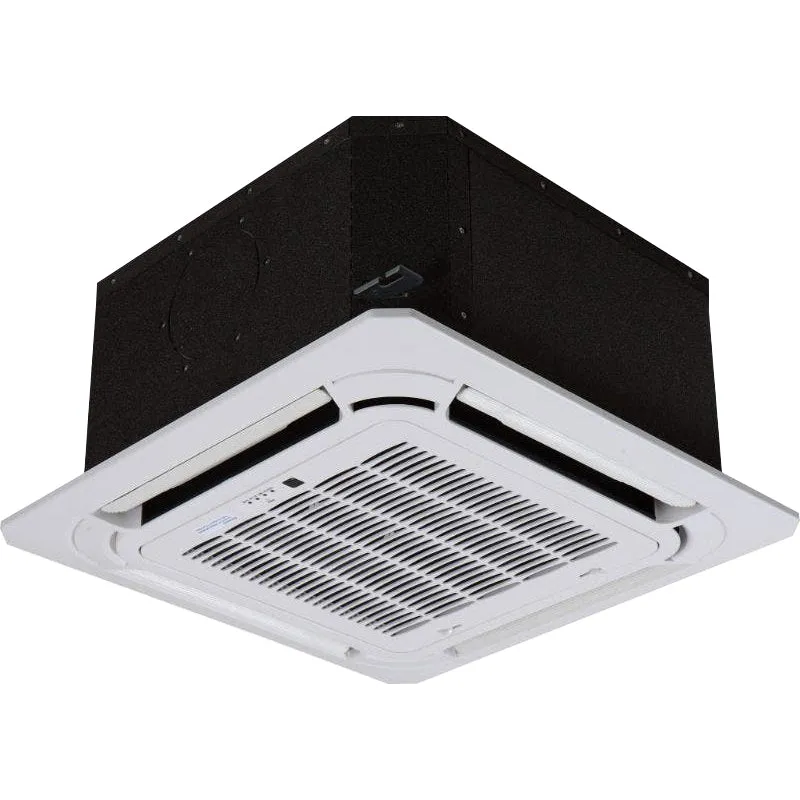

12,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-12CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Features:
- 12,000 BTU of Heating or Cooling
- Dry and Fan modes also available
- Ideal for spaces up to 600 square feet (depending on climate)
- 4 Way Air Supply for consistent room coverage
- Handheld remote included
- Decorative Grille included
Condenser Specifications:
Brand | ACIQ |
SKU | ACIQ-18Z-HH-M2B |
Refrigerant Charge | 50' |
Weight (in lbs) | 160.940000 |
AHRI Certificate Number | 207825576 |
HSPF | 9.8 |
Cooling BTU | 19000 BTU |
Heating BTU | 20000 BTU |
Decibel Level (dBA) | 63.4 |
Electric Heat | Heat Pump |
Energy Star | Yes |
Refrigerant | R410A |
SEER1 (Efficiency) | 21-22 |
SEER2 (Efficiency) | 22.3 |
EER | 12.5 |
Compressor Type | Rotary |

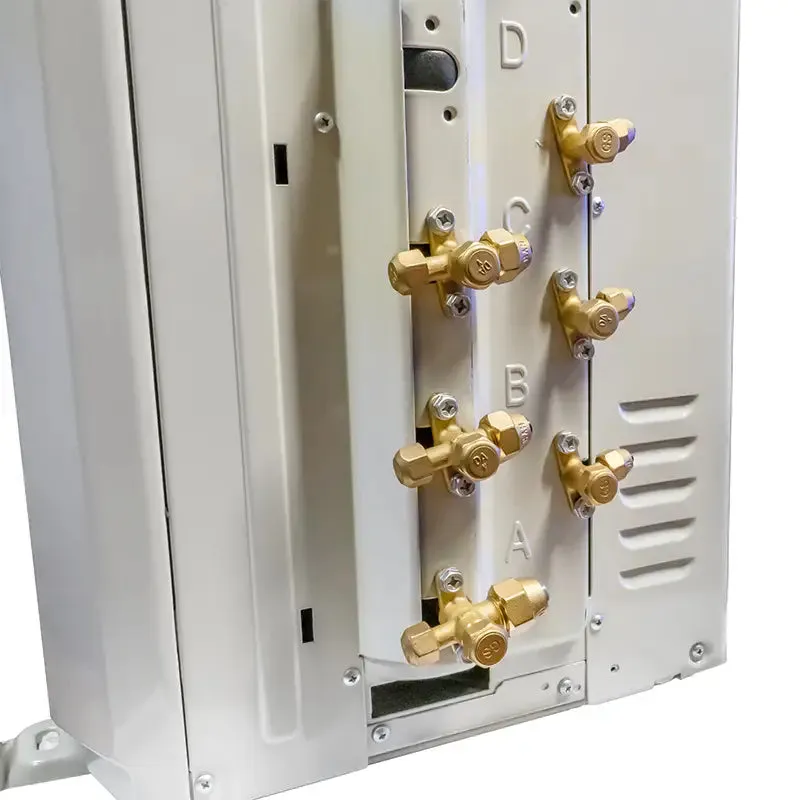

Liquid Line | 1/4" (2) |
Suction Line | 3/8" (2) |

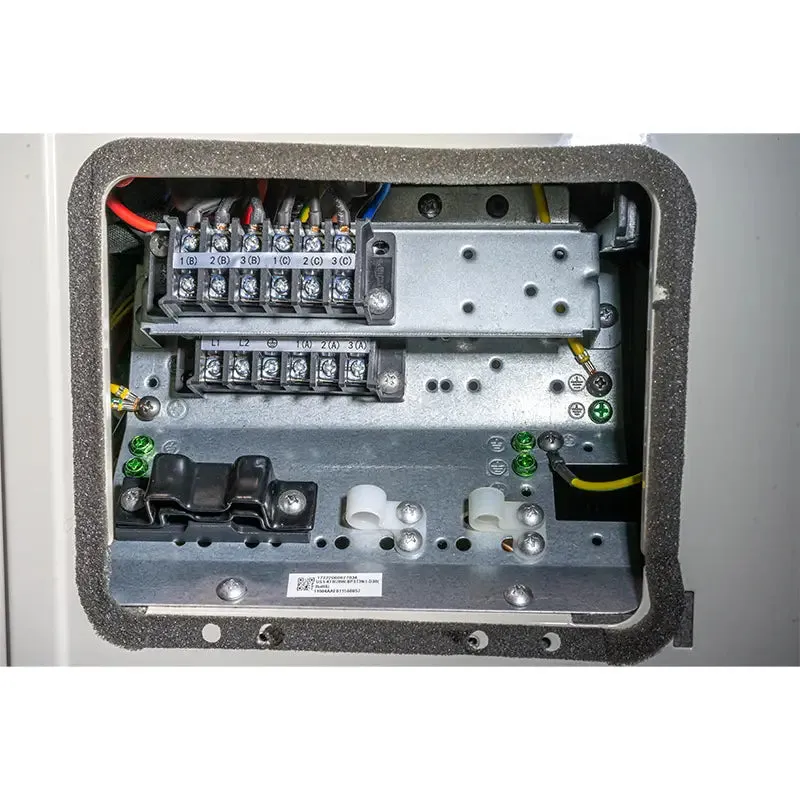

Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 25 Amps |
Min. Breaker Size | 20 Amps |
Tonnage | 1.5 Ton |
BTU/Tonnage | 18,000 BTU/1.5 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Ambient Temperature Range | -22 ~ 122 |
Height | 31-9/10" |
Width | 37-1/4" |
Depth | 16-1/5" |
Warranty | 12 year compressor, 7 year parts with online registration |
Safety Information | PROPOSITION 65 WARNING |
12K BTU Air Handler Specifications:
Brand | ACIQ |
SKU | ACIQ-12CC-HH-MB / ACIQ-CC-GRILLE |
Weight (in lbs) | 41.010000 |
Controller | Wireless Included |
Cooling BTU | 12,000 BTU |
Heating BTU | 12,000 BTU |
Maximum CFM | 335.29 |
Decibel Level (dBA) | As low as 31.5 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.45 gal/hr |
SEER2 (Efficiency) | 22.3 |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
Max Breaker Size | 15 |
Min. Breaker Size | 15 |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini-Split Type | Ceiling Cassette |
Zone Compatibility | Multi Zone |
Height | 10.25" |
Width | 22.5" |
Depth | 22.5" |
Warranty | 12 year compressor, 7 year parts with online registration |
Safety Information | PROPOSITION 65 WARNING |
Product Information and Guides:
Condenser
12K BTU Air Handler
