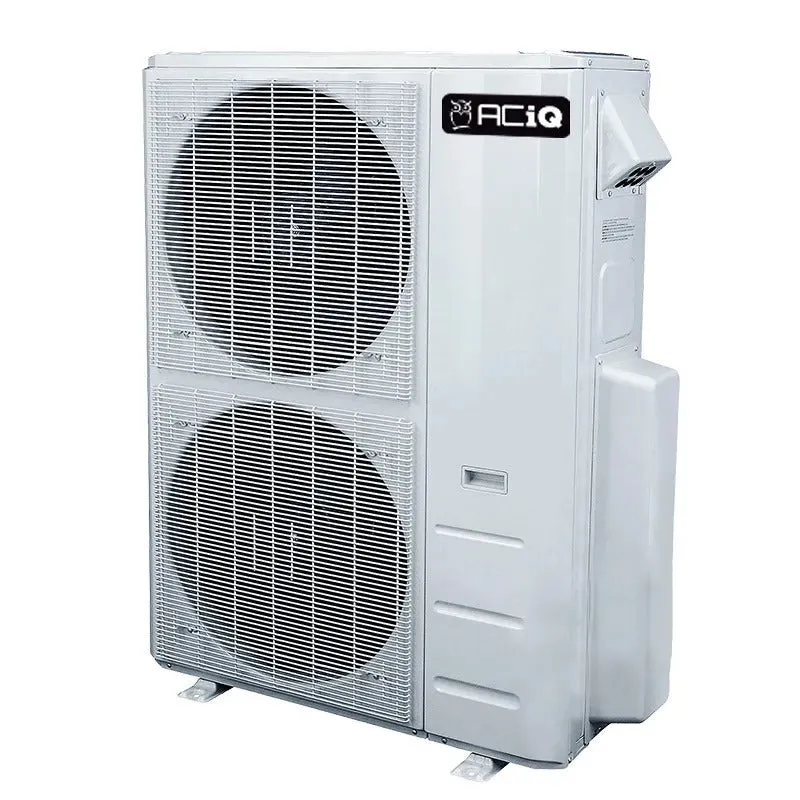

36,000 BTU ACiQ Multi Zone Condenser w/Max Heat
The 36,000 BTU, ACiQ-36Z-HH-M4 is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 45,000 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 21.5 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
| Model | ACIQ-36Z-HH-M4B |
| Available Zones |
4 |
| SEER2 |
22.3 |
| Cooling BTU |
36,000 |
| Heating BTU |
36,000 |
| Electrical |
208/230V 1 Phase 60 Hz |
| Liquid Line |
1/4" (4) |
| Suction Line |
3/8" (3) 1/2" (1) |
| Height | 52.5" |
| Width | 37.5" |
| Depth | 16.14" |
| Weight | 255 lbs |
| Warranty | 12-Year Compressor / 7-Year Parts with Registration |
Features
- 36,000 BTU, 21.5 SEER multi zone heat pump condenser
- Designed to function with up to 4 attached air handlers
- Efficient cooling from -22 F to 122 F outdoor temperatures
- Efficient heating from -22 F to 75 F outdoor temperatures
- Integrated Max Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
