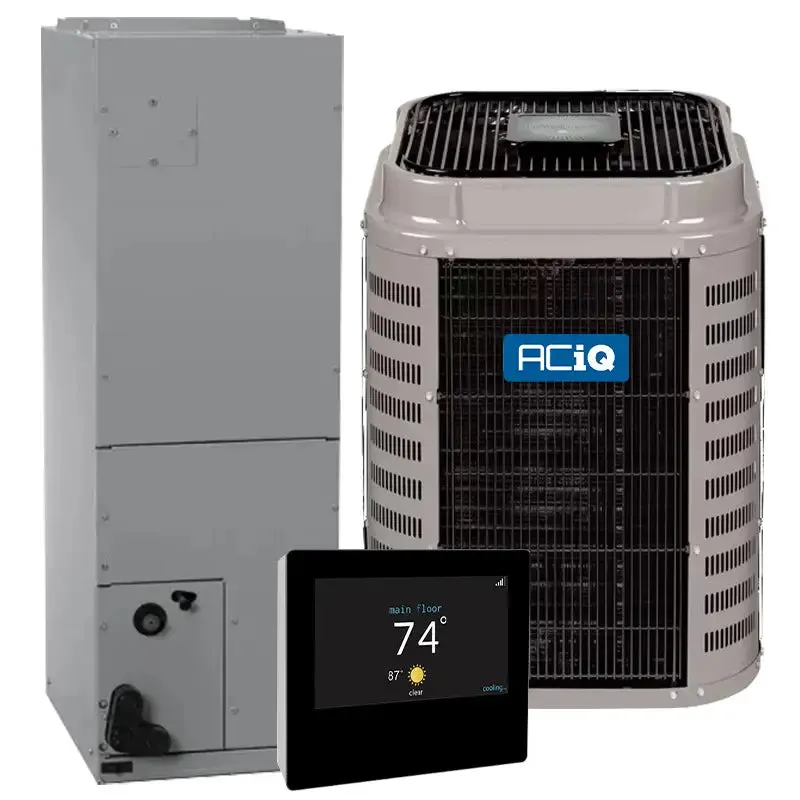

4 Ton 18 SEER ACiQ Variable Speed Heat Pump Air Conditioner System
An ACiQ combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, the ACiQ heat pump air conditioner system is the perfect choice for all of your heating and cooling needs.
All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty.
This system has been approved to be installed in manufactured and mobile home applications. However please check the dimensions of the air handler and ensure that it will fit in the location desired.

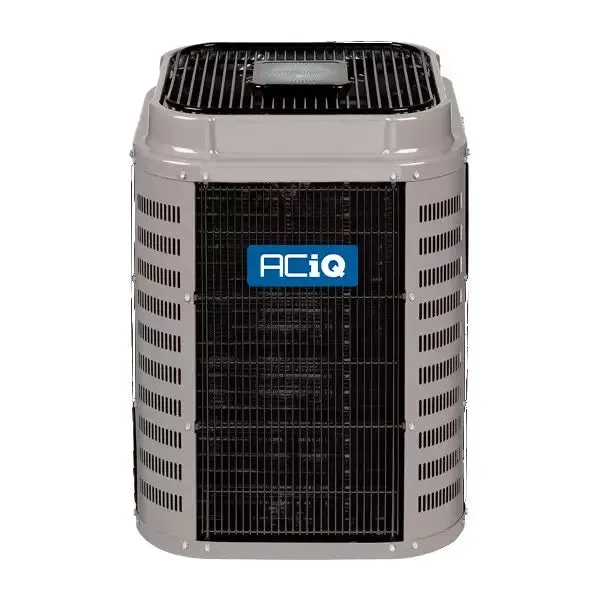

4 Ton 18 SEER Variable Speed ACiQ Heat Pump
With its communicating nature and variable speed compressor, the ACiQ HVH848GKA lives up to its name, providing one of the most superior comforts to your home on the market today. If you want the best of the best possible heat pump condenser with exceptional comfort and the highest possible efficiency offered by ACiQ at this size, this is it.
QUICK FACTS
- 4 ton, 19 SEER heat pump condenser
- Can heat and cool up to a large house in average conditions
- Variable speed compressor with communicating capabilities with other matching system components
- Filter drier included to be field-installed and suction line accumulator factory-installed
- Built-in temperature sensor for automated heat source transition
- Multiple safety switches to protect both the unit and your home
- Energy Star certified
4 Tons
The ACiQ HVH848GKA heat pump condenser has an output of 4 tons, generally enough to heat and cool up to a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.
19 SEER
The ACiQ HVH848GKA air conditioner condenser is rated at 19 SEER, making it approximately 25% more efficient than the minimum efficiency 14 SEER units, saving you money in electric bills over the entire lifetime of your unit. With its 19 SEER rating, this condenser is one of the most efficient units on the market today. In general, heat pumps will heat more efficiently than straight electric furnaces, making them an excellent and money-saving solution for almost any all-electric solution, especially when you have a lot of heating during outdoor temperatures ranging from when you start using your heating system all the way down to 35°F.
Warranty
ACiQ offers a 10 year parts warranty on its condensers, and on this unit there is also a 10 year no hassle replacement limited warranty. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Intelligently Enhanced Comfort
Engineered to be 2 stage and with the ability to communicate with communicating air handler counterparts, the ACiQ HVH848GKA can support the most precise temperature output available, providing primarily enhanced comfort to your home year-round. Moreover, this unit is a communicating system when paired with a compatible air handler and other accessories (both available at an additional cost), allowing it to relay information to and from the thermostat constantly for optimal performance. On top of these benefits, these system features provide a small efficiency boost, all amounting to one of the best types of systems on the market today.
Quiet Comfort
Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.
High Efficiency
ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.
Longer life, longer warranty
ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

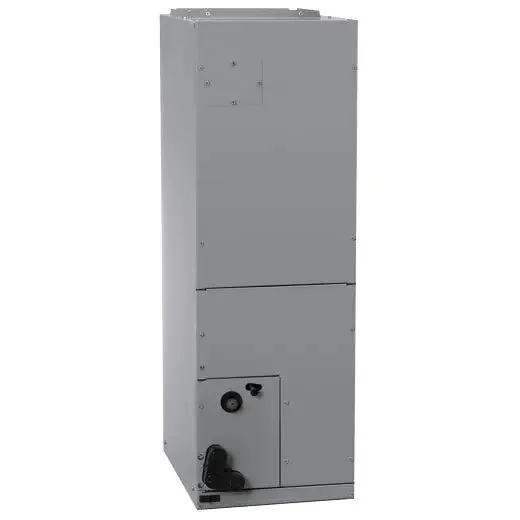

5 Ton Multi-Positional ACiQ Communicating Air Handler
Considered part of their top of the line series, the ACiQ FCM4X6000AL is superior In quality of comfort, efficiency, and features. From its variable speed communicating blower motor to its integrated TXV kit, this unit will provide reliable comfort to your home while performing efficiently.
QUICK FACTS
- 5 ton air handler
- Variable speed communicating blower motor
- Enhanced dehumidification and temperature control
- Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
- Factory-installed TXV kit for enhanced energy optimization
- Compatible with both AC-only and heat pump condensers
- Sturdy, fully insulated cabinet
- Convenient integrated washable filter
5 Tons
The ACiQ FCM4X6000AL air handler is rated for an output of 5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
Warranty
ACiQ offers a 10 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.
Installation and Durability
To make a more versatile unit, ACiQ designed the FCM4X6000AL to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FCM4X6000AL air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum. To reduce mold and bacteria buildup, the drain pan is treated and is sloped.
Intelligent Comfort
The FCM4X6000AL air handler has an ECM variable speed blower motor, not only increasing its efficiency but also providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FCM4X6000AL meets ACiQ's superior standards.

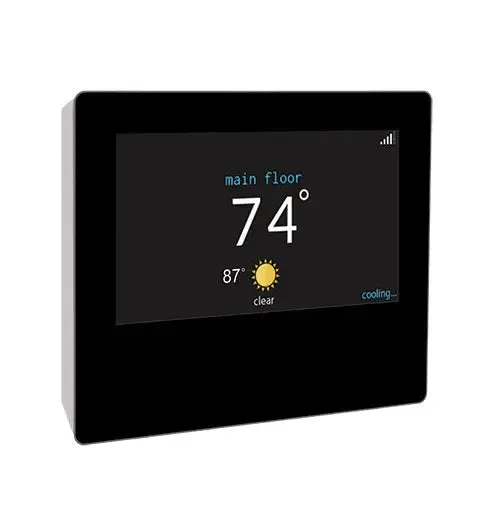

Ion System Control
Don't call it a thermostat -- mere thermostats simply don't offer all of the features and functionality of the Ion™ System Control. Offering full command over a communicating comfort system, including temperature, humidity, ventilation, comfort scheduling, energy management and more, this is our most fully-featured control. Anywhere in the connected world, you are just a touch or a tap away from full system control with an internet-enabled device.
Features:
- High resolution, smartphone-like touchscreen
- Wi-Fi enabled for remote access and control
- Pair with our communicating, modulating gas furnace; variable-speed fan coil; inverter-driven outdoor units; and zoning system for a complete Ion Comfort System
- Capable of controlling temperatures and fan speeds in up to eight zones
- Local weather 5-day forecast
- Humidity control for enhanced comfort
- Dual fuel system management capable
- Auto changeover between heating and cooling
- Four levels of "constant ON" fan speeds
- 7-day programming with temperature control throughout the day and week (wake, away, home, sleep)
- Advanced smart setback for optimal energy savings during "away" and ramp up periods
- One-button Touch-N-Go quick-settings-change feature
- Simple vacation programming controls temperature and humidity
- System maintenance reminders
- 10-Year No Hassle Replacement Limited Warranty
What's Included:
- 1x 4 Ton 18 SEER Variable Speed ACiQ Heat Pump
- 1x 5 Ton Multi-Positional ACiQ Communicating Air Handler
- 1x ACiQ Ion System Control
Heat Pump Specifications:
Manufacturer | ACiQ |
Model | HVH848GKA |
Weight |
207.000000 |
Equivalent |
|
Cooling BTU | 48,000 |
Heating BTU | 48,000 |
Energy Star | Yes |
Refrigerant | R410A |
SEER | 18 |
Condenser Stages | Variable Speed |
Compressor Type | Scroll |
Liquid Valve Size | 3/8" |
Suction Valve Size |
7/8" |
Electrical | 208 / 230 V. 1 Phase 60 Hz |
Max Breaker Size |
50 amps |
Min. Breaker Size |
31.4 amps |
Tonnage | 4 Ton |
Height |
39" |
Width | 31" |
Depth | 31" |
Warranty | 10 Years No Hassle Replacement Warranty with Online Registration |
Resources |
|
Safety Information | Proposition 65 Warning |
Air Handler Specifications:
Manufacturer | ACiQ |
SKU | FCMB4B60L0DA |
Weight | 207.000000 |
Replaces | FCM4X6000AL |
Equivalent |
|
Communicating | Yes |
Blower Motor |
Variable Speed |
Maximum CFM | 1750 |
Motor RPM | 300-1300 |
Horsepower | .75 HP |
Horsepower Mult | .75 HP |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts, 25 Kilowatts, 30 Kilowatts |
Refrigerant | R410A |
Filter Size | 23 5/16" x 21 1/2" |
EER |
9.5-13 |
Liquid Line | 3/8" |
Suction Line |
7/8" |
Electrical | 208/230v 1 Phase 60 Hz |
Phase | Single Phase |
Max Breaker Size | 15 Amps |
Tonnage | 5 Ton |
Connection | Sweat |
Certification | UL Listed |
Height | 59 3/16" |
Width |
24 11/16" |
Depth | 22 1/16" |
Warranty | 10 Year No Hassle Replacement and 10 Year Parts with Registration |
Resources |
|
Safety Information | Proposition 65 Warning |
Ion System Control Specifications:
Brand | ACiQ |
Model | SYST0101CW |
Weight (in lbs) | 1.000000 |
Warranty | 10 Years No Hassle Replacement / 10 Years Parts with Online Registration |
Resources |
|
Safety Information | Proposition 65 Warning |
